Aft section of Flying Deck

Flying Deck
Aft Section of Flying Deck

Aft Section of Flying Deck Overlooking Flying Deck Ventilator shaft From Conning Tower looking Aft Forward section of Flying Deck From Conning Tower looking Forward Forward section of Flying Deck looking Aft

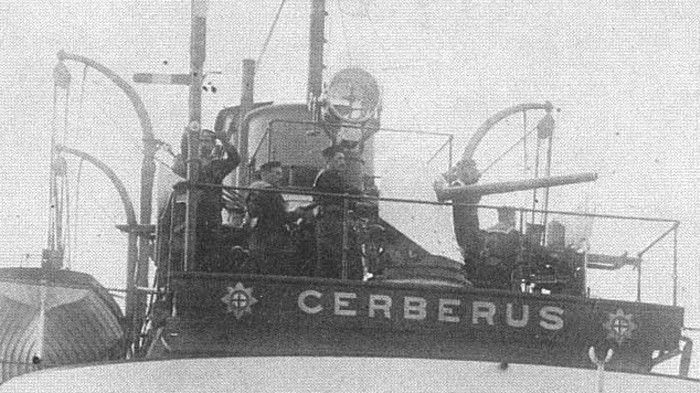

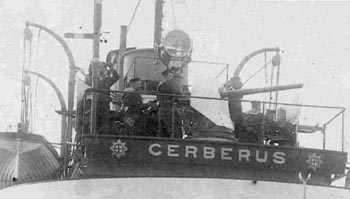

The Semaphore Equipment mouseover on main image and operator is on the left, Nordenfelt Six Pounder Q F gun mouseover on main image in centre and Nordenfelt 4 barrel machine gun mouseover on main image at right. The "projector" mouseover on main image or searchlight is in the centre. The Military Top mouseover on main image can be seen to the left of the Projector. (A man with a 4 Barrel Nordenfelt gun could be positioned in the Fighting Top.)

Photo courtesy of Peter Baxter
