Flying Deck
Flying Deck Map Aft Section of Flying eck Overlooking Flying Deck Ventilator shaft From Conning Tower looking Aft Forward section of Flying Deck From Conning Tower looking Forward Forward section of Flying Deck looking Aft

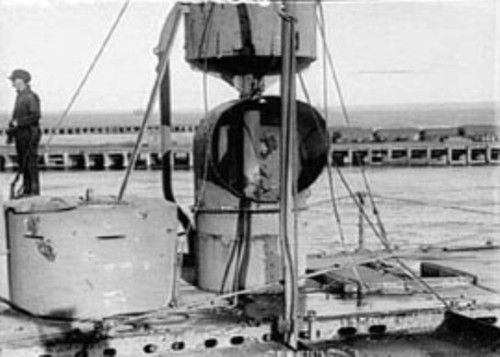

The Ventilator Shaft mouseover on main image has at some stage been turned as here it faces to port. The Military Top mouseover on main image is above the ventilating shaft.

The access hatch to the right,mouseover on main image which would have been covered by the charthouse, leads via a ladderway down to the shield deck. A workman can be seen in the shaft. The Conning Tower mouseover on main image is to the left.

The photo shows the cutting up of the deck structure using oxy-acetylene when Cerberus was scrapped in 1924.Argus June 4 1924
